CaliCoe

California Specific Benchmark Question

Recommended Posts

While hiking in a local state park (Henry W. Coe) I saw a survey marker just off the trail set in a concrete footer. I took a photo (sorry, it was a real photo not digital and thus not on my computer). It was marked "California Dept of Parks & Beaches" with the year 1966 and the designation F-5 stamped into it. I read the FAQ on benchmarks that aren't on the website, so I just wanted to share this info with everyone. I'm hoping someone can give me some history on these benchmarks and maybe a little about the old department of Parks and Beaches. I'll try to get the phot scanned, but until then, for those who are interested, the location is:



N37°10.934 W121.31746

Share this post


Link to post

Henry W. Coe... is that the one that's just north of Big Basin? (Sorry... too lazy to look it up on the web at the moment)

Share this post


Link to post

Hello CaliCoe,



Did you ever find out what the deal was with that benchmark? I found one recently at Big Basin Redwoods State Park at N 37 10.522' W 122 13.972' that I'm having trouble finding information on (or any information on California-specific benchmarks in general).

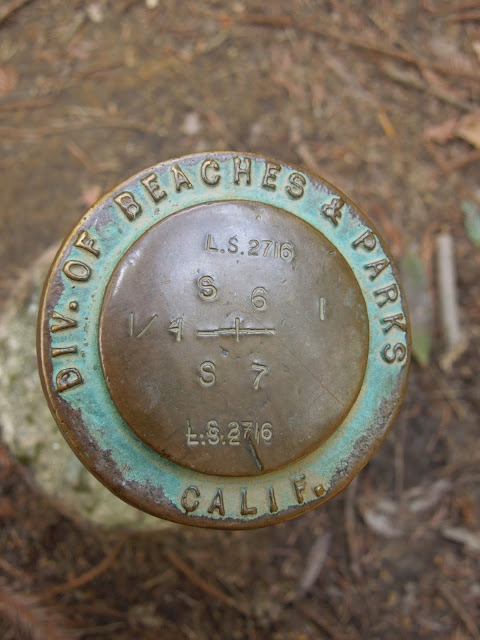

Here's what I know:



Coordinates -- N 37 10.522' W 122 13.972'

Altitude (as reported by my GPS) -- 1264 ft

Markings --



L.S. 2716



S 6

1/4 --|-- 1



S 7



L.S. 2716







While hiking in a local state park (Henry W. Coe) I saw a survey marker just off the trail set in a concrete footer. I took a photo (sorry, it was a real photo not digital and thus not on my computer). It was marked "California Dept of Parks & Beaches" with the year 1966 and the designation F-5 stamped into it. I read the FAQ on benchmarks that aren't on the website, so I just wanted to share this info with everyone. I'm hoping someone can give me some history on these benchmarks and maybe a little about the old department of Parks and Beaches. I'll try to get the phot scanned, but until then, for those who are interested, the location is:



N37°10.934 W121.31746

Share this post


Link to post

Hello CaliCoe,



Did you ever find out what the deal was with that benchmark? I found one recently at Big Basin Redwoods State Park at N 37 10.522' W 122 13.972' that I'm having trouble finding information on (or any information on California-specific benchmarks in general).



Here's what I know:



Coordinates -- N 37 10.522' W 122 13.972'

Altitude (as reported by my GPS) -- 1264 ft

Markings --



L.S. 2716



S 6

1/4 --|-- 1



S 7



L.S. 2716







While hiking in a local state park (Henry W. Coe) I saw a survey marker just off the trail set in a concrete footer. I took a photo (sorry, it was a real photo not digital and thus not on my computer). It was marked "California Dept of Parks & Beaches" with the year 1966 and the designation F-5 stamped into it. I read the FAQ on benchmarks that aren't on the website, so I just wanted to share this info with everyone. I'm hoping someone can give me some history on these benchmarks and maybe a little about the old department of Parks and Beaches. I'll try to get the phot scanned, but until then, for those who are interested, the location is:



N37°10.934 W121.31746



I believe the mark pictured above is a Public Land Survey System marker placed on the boundary between Section 6 and Section 7 of 9S 3W. (This would be referred to as a "quarter corner" marker as it is halfway between two section corners.)



Here's an image to show what I found:




And that mapping system is accessible here:

http://www.geocommunicator.gov/GeoComm/lsis_home/home/

Under Interactive Maps/PLSS

More info on the PLSS in general can be found here:

http://en.wikipedia.org/wiki/Public_Land_Survey_System



As for the other one mentioned in here, a picture would be helpful, but taking a guess based on the coordinates (which I assume were supposed to be N37 10.934' W121 31.746 not W121.31746) and say that it might have been placed as a park boundary marker.

Share this post


Link to post

Hello CaliCoe,



Did you ever find out what the deal was with that benchmark? I found one recently at Big Basin Redwoods State Park at N 37 10.522' W 122 13.972' that I'm having trouble finding information on (or any information on California-specific benchmarks in general).



Here's what I know:



Coordinates -- N 37 10.522' W 122 13.972'

Altitude (as reported by my GPS) -- 1264 ft

Markings --



L.S. 2716



S 6

1/4 --|-- 1



S 7



L.S. 2716







While hiking in a local state park (Henry W. Coe) I saw a survey marker just off the trail set in a concrete footer. I took a photo (sorry, it was a real photo not digital and thus not on my computer). It was marked "California Dept of Parks & Beaches" with the year 1966 and the designation F-5 stamped into it. I read the FAQ on benchmarks that aren't on the website, so I just wanted to share this info with everyone. I'm hoping someone can give me some history on these benchmarks and maybe a little about the old department of Parks and Beaches. I'll try to get the phot scanned, but until then, for those who are interested, the location is:



N37°10.934 W121.31746



I believe the mark pictured above is a Public Land Survey System marker placed on the boundary between Section 6 and Section 7 of 9S 3W. (This would be referred to as a "quarter corner" marker as it is halfway between two section corners.)



Here's an image to show what I found:




And that mapping system is accessible here:

http://www.geocommunicator.gov/GeoComm/lsis_home/home/

Under Interactive Maps/PLSS

More info on the PLSS in general can be found here:

http://en.wikipedia.org/wiki/Public_Land_Survey_System



As for the other one mentioned in here, a picture would be helpful, but taking a guess based on the coordinates (which I assume were supposed to be N37 10.934' W121 31.746 not W121.31746) and say that it might have been placed as a park boundary marker.



Thanks, EdrickV!
